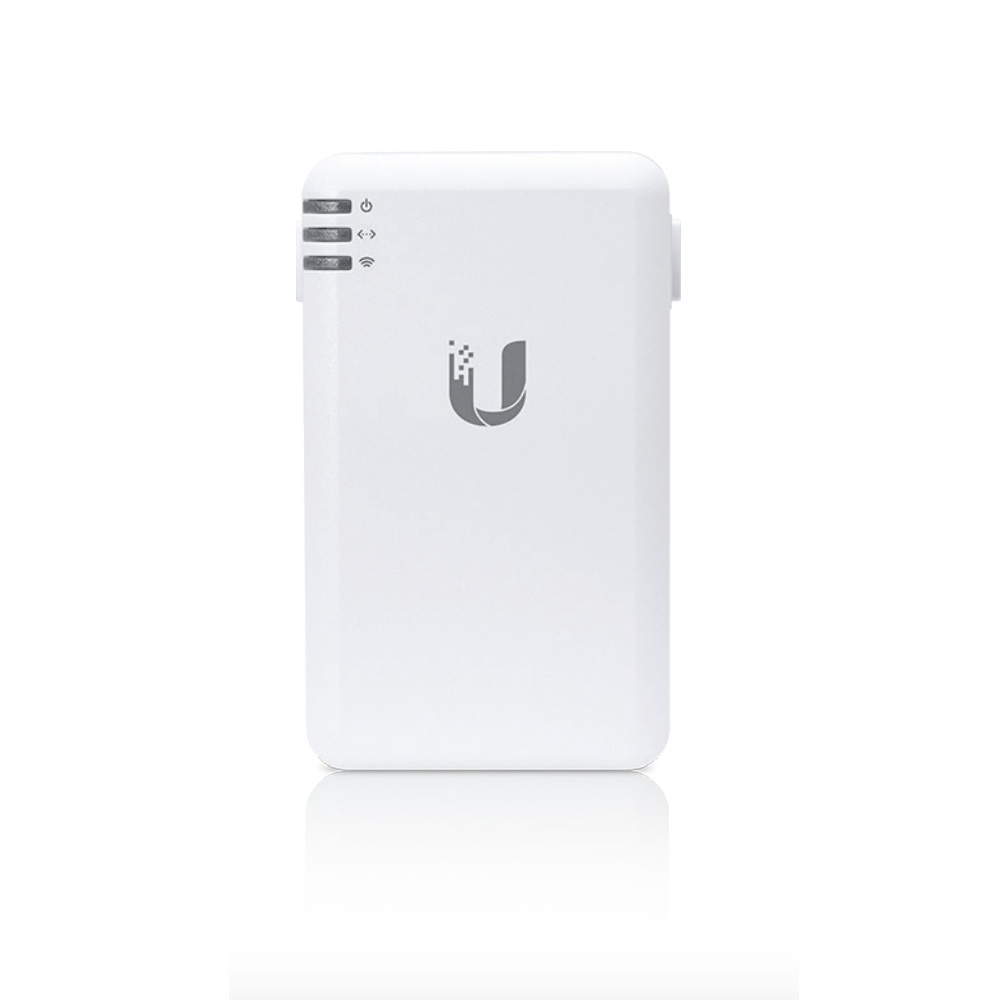

mPORT-S
Two mFi RJ45 connectors and a terminal block connector with RS232/422/485 serial connectivity through a standard DB9 serial port or a terminal block connector and built-in WiFi and Ethernet to connect to the IP network.
- Dimensions 100 x 60 x 27.5 mm (H x W x D) 100 x 60 x 36.5 mm (with Bracket)
- Power Supply 24V, 0.5A Surge Protection Integrated PoE Adapter (Included)
- Max. Power Consumption 3 W
- Networking Interface (1) 10/100 Ethernet Port
- Ports (1) DB9 Serial Port (1) Terminal Block Serial Port
- WiFi Standards 802.11b/g/n
- Serial Protocols RS232, RS422, RS485
- Memory 16 MB RAM, 8 MB Flash
mfi-MSC
mFi is a Machine to Machine management system from Ubiquiti Networks Inc. The mFi hardware can be managed and monitored from the mFi Controller software. The mFi Controller software allows you to create rules that trigger actions based on data from your mFi sensors. For example motion detection could turn a light on or a high temperature reading could trigger a fan. The mFi platform is compatible with third party devices making the options unlimited! Ceiling Mount Motion Sensor (mFi MSC) is a dual technology motion sensor using both passive infrared and microwave motion sensors to minimize the likelihood of false detections. It is wall mountable and designed for security occupancy detection resource scheduling and other smart building applications. For use with mFi mPort hardware and mFi Controller software (included with the mFi mPort). Connection Type: mFi RJ45 Sensors: Dual Technologies Passive Infrared and Microwave
mPort

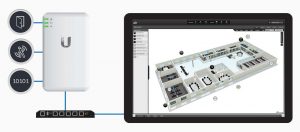

Easy Bridging to IP Network
The mPort™ instantly bridges any serial connection, sensor or other device to your Ethernet or Wi-Fi network.
4net
4net
4net

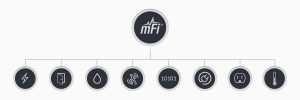

mFi® Sensors
Ubiquiti offers a wide selection of sensors including motion, temperature, current and door/window sensors. Connect sensors to the mPort™ to create an intelligent mFi® network for machine management and smart building automation.
4net
4net
4net

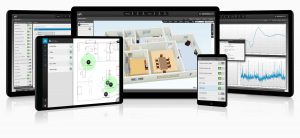

Advanced Management Software
Make buildings smarter and more efficient using the intuitive UI and powerful features of the mFi® Controller software.
4net
4net
4net

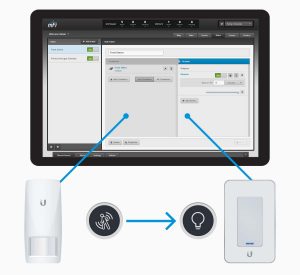

Simple Setup
Easily set up devices by creating rules to control sensors and machines depending on schedules or conditions.
Models:
mPort | mPort-S | mFi-CS | mFi-DS | mFi-MSC | mFi-MSW | mFi-THS
mPort | mPortS | mFiCS | mFiDS | mFiMSC | mFiMSW | mFiTHS
