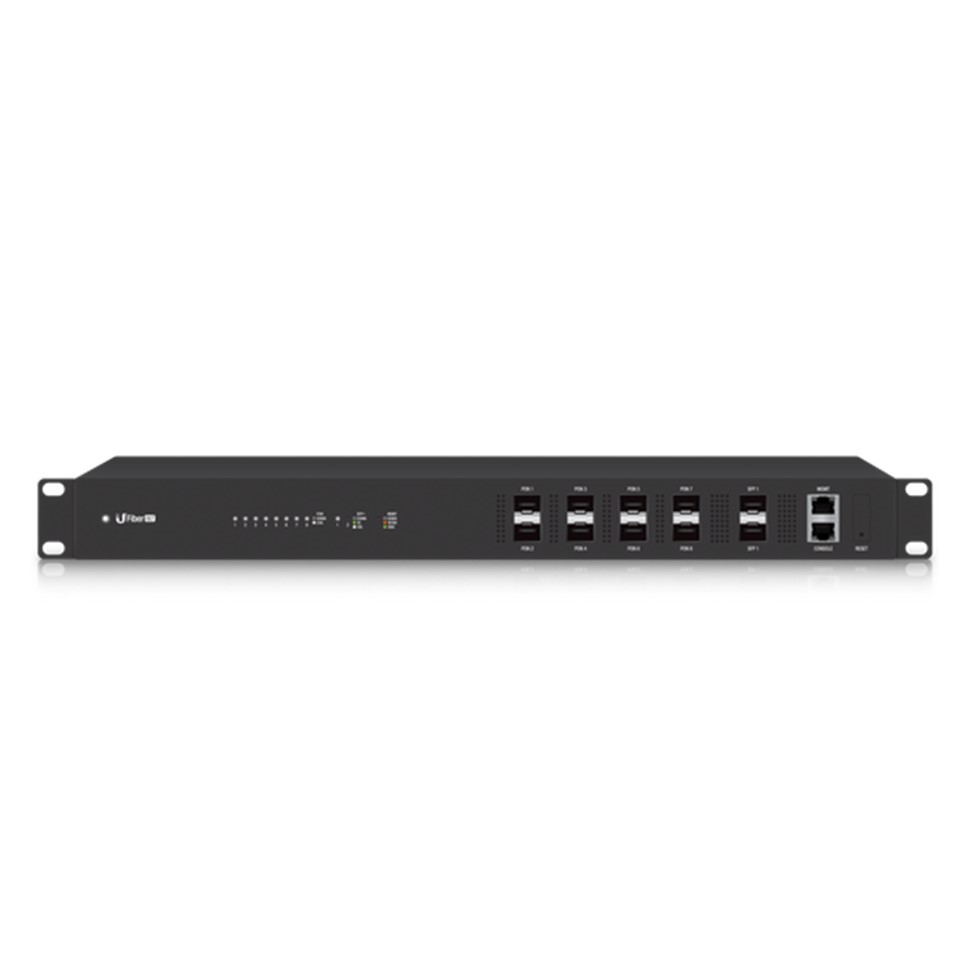

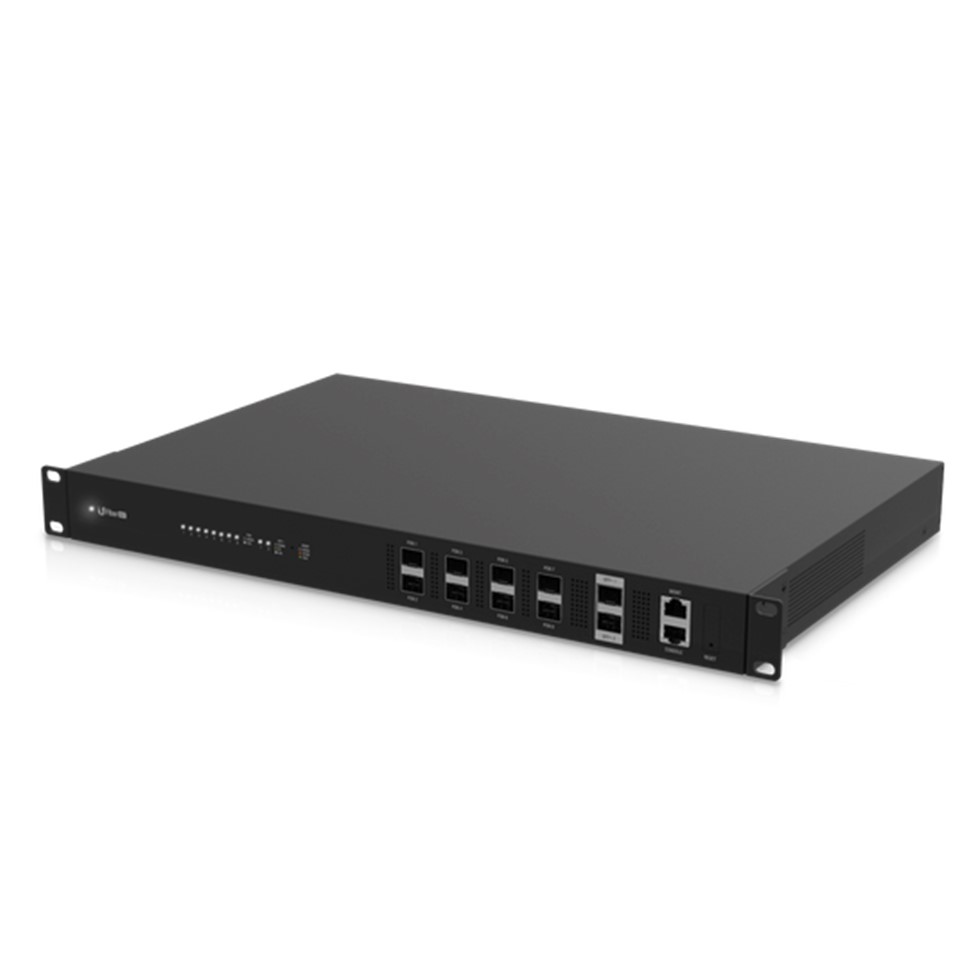

U Fiber GPON OLT 8-port

U Fiber GPON OLT

Questions?

UISP-ready optical line terminal with (8) Gigabit optical network ports, (2) fiber uplinks, and Layer 2/3 switching capability.

UFiber OLT supports up to 128 ONU CPEs per GPON port with physical links of up to 20 km in distance. It also features SFP+ connectivity for uplinking. The UFiber OLT can be mounted in a 1U rack, mounted on a wall, or placed on a desktop. Management options include the Gigabit Ethernet port (out‑of‑band), RJ45 serial console port (CLI), and uplink (in‑band) – configured via the UFiber UI or UISP.

The U Fiber OLT offers (8) GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. Two SFP+ ports provide 10G uplink connectivity.

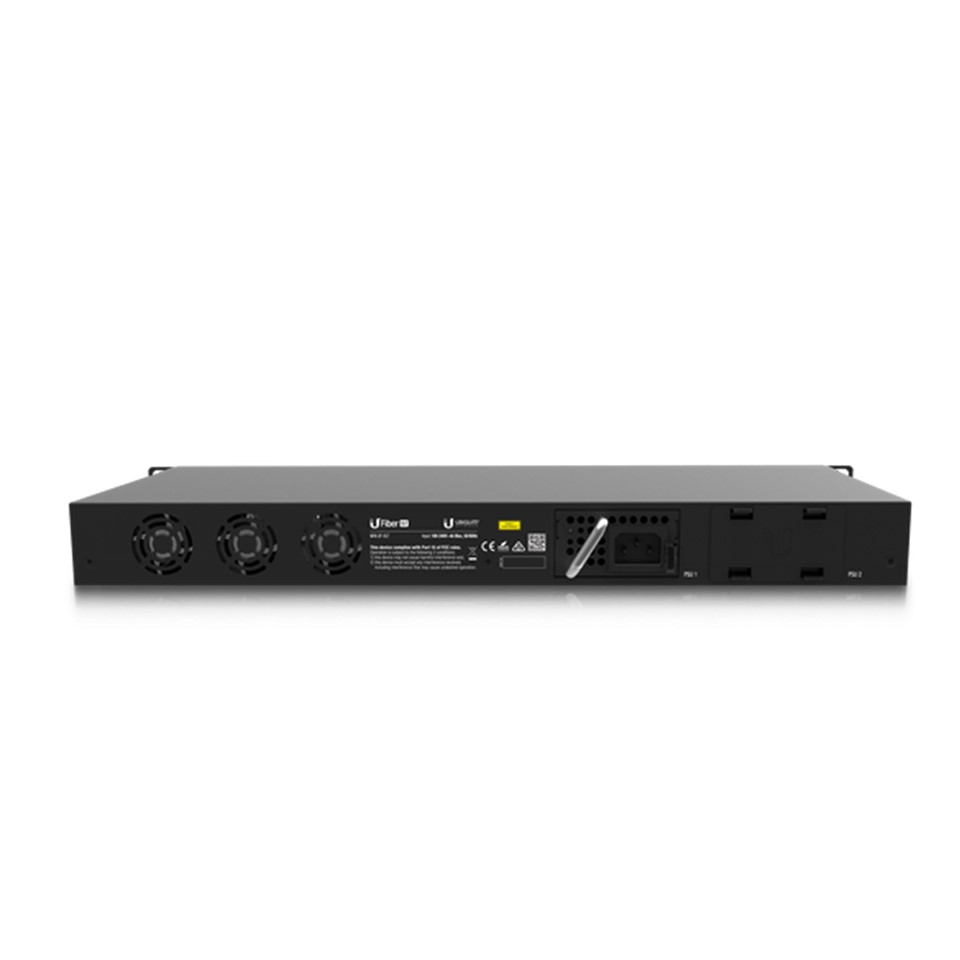

The UF-OLT features two modular power adapter bays for flexible power options. One DC/DC power module is included. The second power bay can house a backup power module, or an AC/DC power module can be used for AC powering.

Features:

• • 8 Gigabit Passive Optical Network Ports
  • Supports up to 1024 Clients (128 per PON Port)
  • Up to 2.488 Gbps TX and 1.244 Gbps RX
  • Two 1G/10G SFP+ Ethernet Ports
  • Flexible Layer 2/3 Management Features
  • FastEthernet port for management
  • Console serial port for management

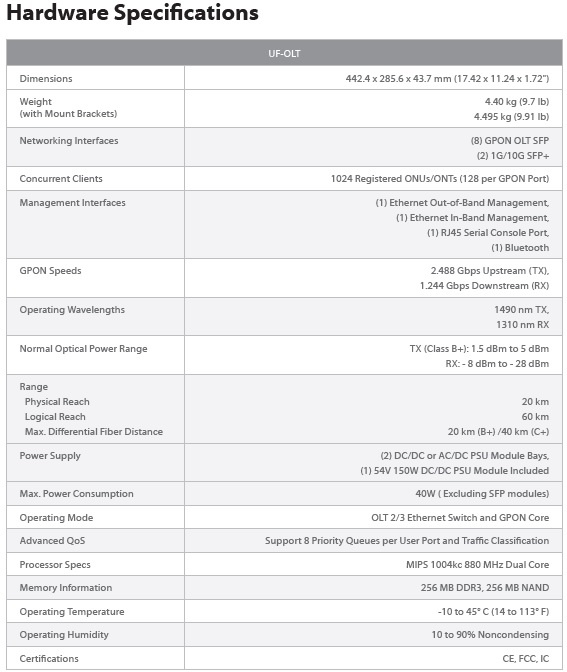

  • WAN: (8) GPON SFP Ports
    • LAN: (2) SFP+ Ports
    • Concurrent Clients: 1024 ONUs
    • GPON Range: Up to 20 km Link
    • GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
    • Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
    • Max. Power Consumption: 40W
    • Power Method: 54VDC
    • Mounting: 1U Rack-Mountable (Optional)

8-port GPON Optical Line Terminal

Model:

UF-OLT

UFOLT

U Fiber GPON OLT
