Isolation Antennas PrismStation
Symmetrical horn antenna
30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co‐location characteristics allow for a higher density of sectors than traditional sector technology.
Asymmetrical horn antennas
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
Model Comparison

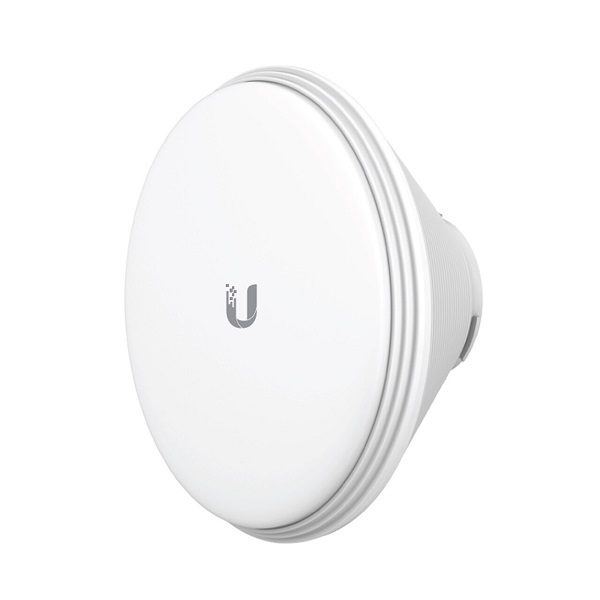

 PrismAP-5-30
|
 PrismAP-5-45
|
 PrismAP-5-60
|
 PrismAP-5-90
|
|
|---|---|---|---|---|
| Gain | 19 dBi | 15.5 dBi | 16 dBi | 13 dBi |
| Frequency | 5.15 ‑ 5.85 GHz | 5.15 ‑ 5.85 GHz | 5.15 ‑ 5.85 GHz | 5.15 ‑ 5.85 GHz |
| Beam Width | 30° | 45° | 60° | 90° |
Models:
PrismAP‑5‑30 | PrismAP‑5‑45 | PrismAP‑5‑60 | PrismAP‑5‑90
