5GHz Ubiquiti PrismStation
PrismStation AC 5 GHz combines airPrism technology with dedicated WiFi management.

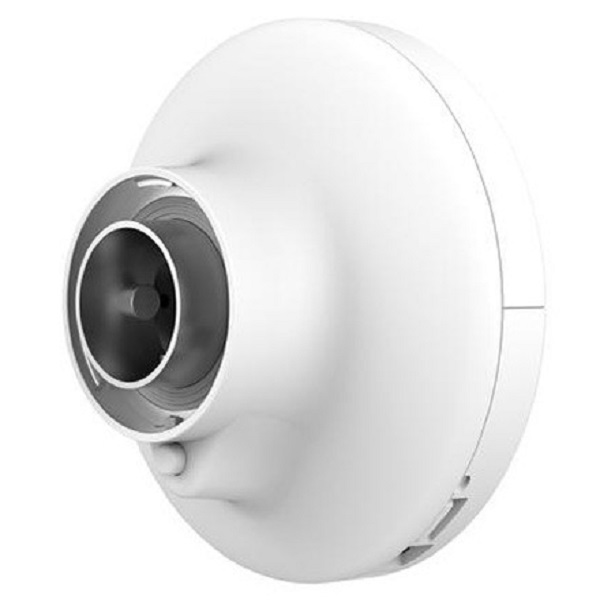

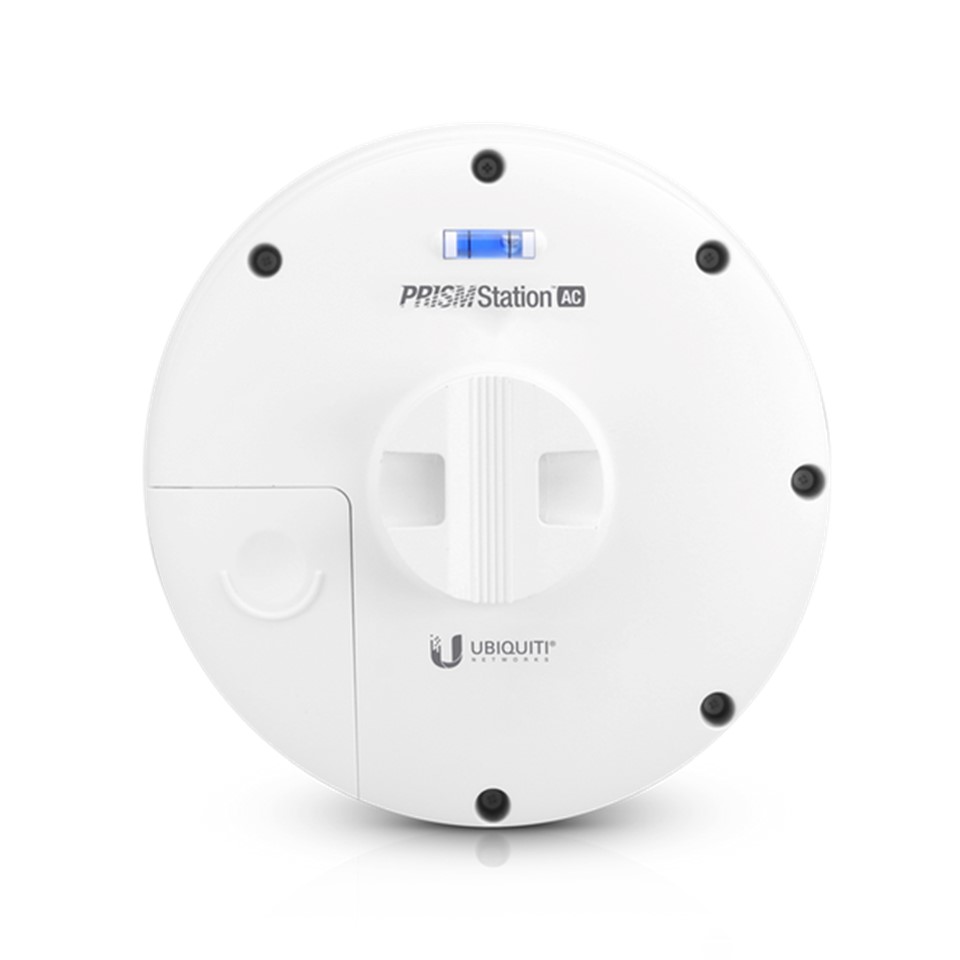

Featuring a die-cast aluminum base and interchangeable horn antenna, the PrismStation 5AC with proprietary airMAX ac chipset and dedicated management Wi-Fi isolates beam communications between your devices. Ideal as an AP in crowded RF environments such as urban areas.
Shielded airMAX® ac BaseStation with airPrism®Technology
With a die-cast aluminum base and interchangeable antenna, the PrismStationTMAC, brings increased performance to your network using technology that isolates beam communications between your devices. Utilizing Ubiquiti’s advanced airMAX® ac processor, the PrismStationTM delivers throughput speeds up to 500+ Mbps and signal ranges up to 5+ km (3+ miles).
Ubiquiti Built to Fight Noise With Prism Active RF Filter
The Ubiquiti R&D team designed airPrism filtering as a robust solution for tower co-location interference. Requiring no communication between radios – and functioning despite noise from other vendors’ radios (unlike GPS synchronization) – airPrism enables greater system capacity and overall throughput by further reducing out-of-band energy.
Modular Design
The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The PrismStationTMÂ AC also gets maximum gain out of the smallest footprint.
GPS Synchronization
PrismStationTMÂ AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Enhanced Co-Location
Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.
Improved Noise Immunity
PrismStationTMÂ AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
High MAC Efficiency
High MAC Efficiency provides ±80% PHY RATE throughput.
Management Wi-Fi Radio
The PrismStationTMÂ AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Advanced Software
Sporting an all-new design for improved usability, airOS® 8 is the revolutionary operating system for Ubiquiti® airMAX®ac products.
Model:
PS-5AC
PS5AC
5GHz Ubiquiti PrismStation
5GHz Ubiquiti PrismStation
