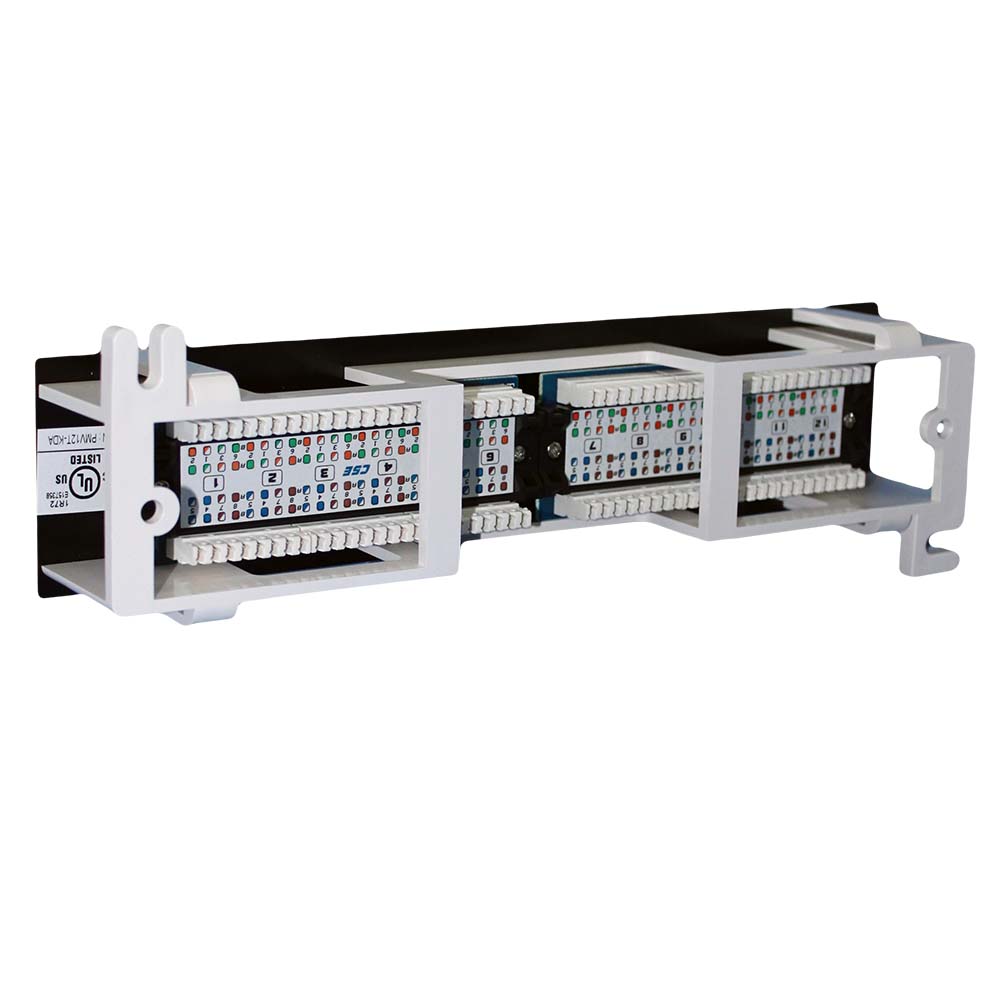

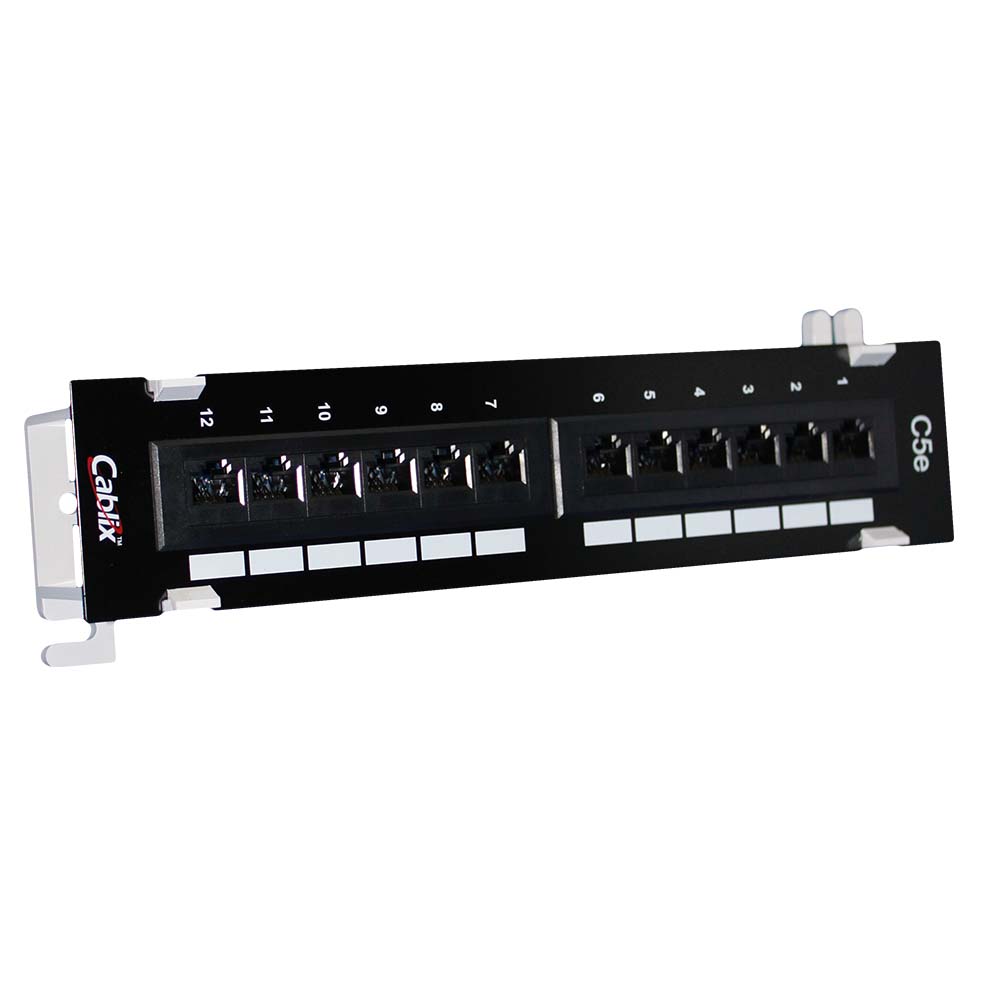

MPE-01 12 Ports Patch Panel

Patch Panel Specification

• Material
• 1. Panel: SPCC, 1.5mm thickness with Black (RAL9005) color painted.
• 2. RJ45 Jack:
• 2.1. Housing: ABS, UL 94V-0.
• 2.2. Contact Bracket: PC, UL 94V-2, transparent color.
• 3. RJ45 Jack Contact:
• 3.1. Material: Phosphor Bronze with Nickel plated.
• 3.2. Finish: 50 micro-inch Gold plated on Plug contact area.
• 4. IDC:
• 4.1. Housing: PC+Glass Fiber, UL 94V-2.
• 4.2. Terminal: Phosphor Bronze with Tin plated.
• 5. Jack Bracket Set: ABS, UL 94V-0.
• 6. Panel Bracket: ABS, UL 94V-0.
• 7. PCB: FR4, UL 94V-0.
• Technical information
• T568A & T568B wiring.
• The Cat5e transmission performance is in
• compliance with the ANSI/TIA 568 B.2 standard.
• UL listed.
• BLACK

Patch Panel
