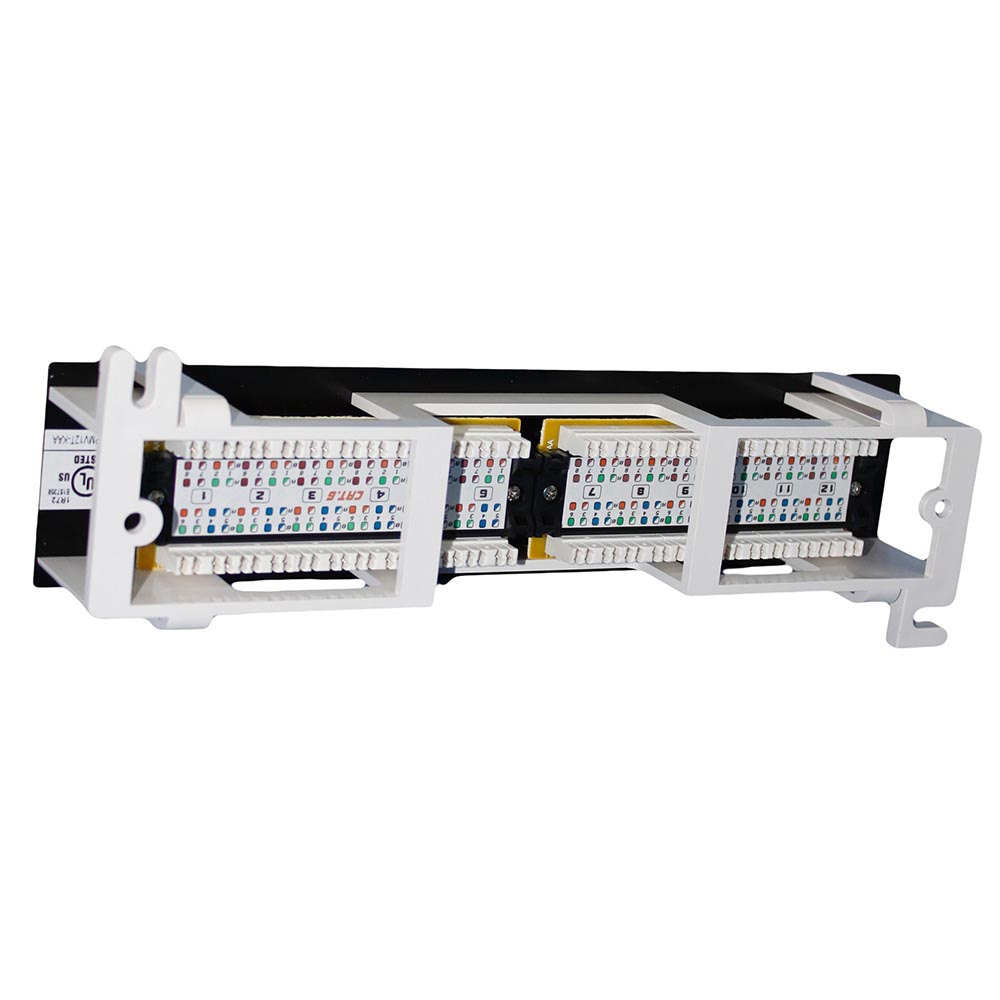

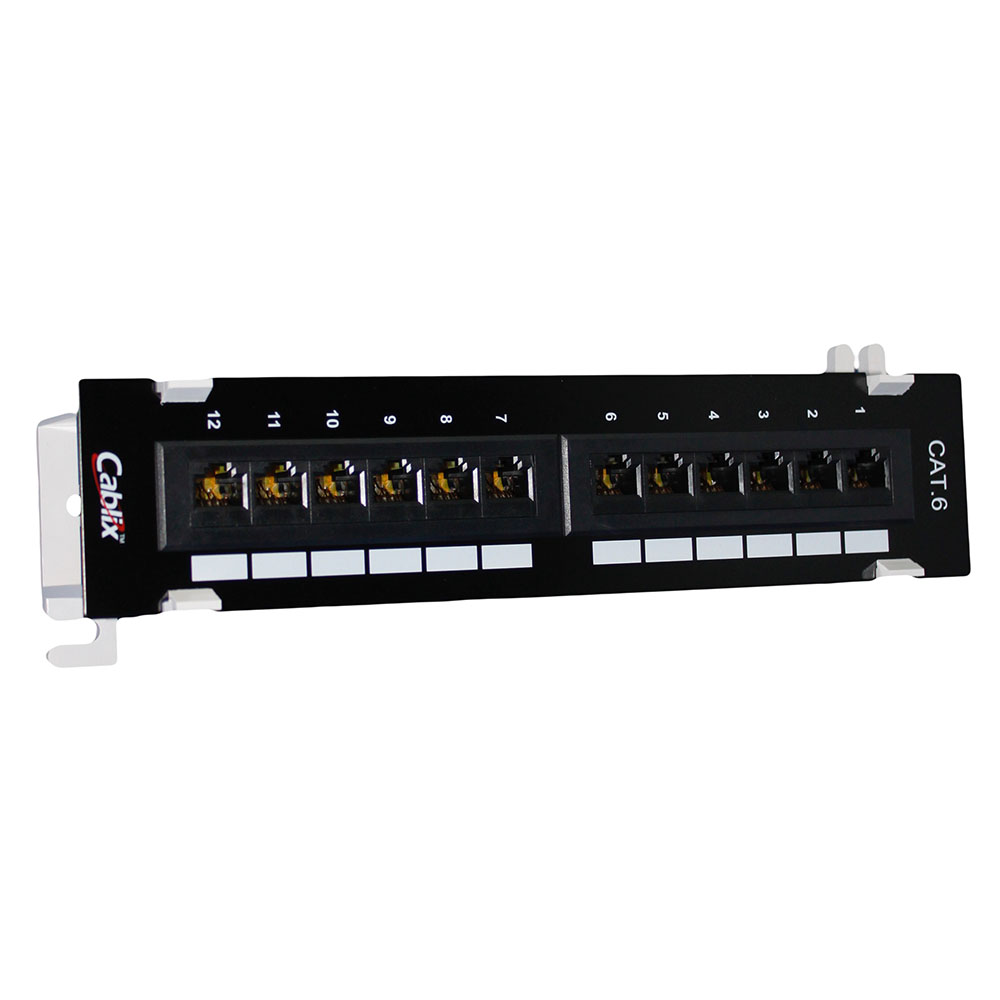

MP6-01 Patch Panel

Panel Specification

• Material
• 1. Panel: SPCC, 1.5mm thickness with Black (RAL9005) color painted.
• 2. RJ45 Jack:
• 2.1. Housing: ABS, UL 94V-0.
• 2.2. Contact Bracket: PC, UL 94V-2, transparent color.
• 3. RJ45 Jack Contact:
• 3.1. Material: Phosphor Bronze with Nickel plated.
• 3.2. Finish: 50 micro-inch Gold plated on Plug contact area.
• 4. IDC:
• 4.1. Housing: PC+Glass Fiber, UL 94V-0.
• 4.2. Terminal: Phosphor Bronze with Tin plated.
• 5. Jack Bracket Set: ABS, UL 94V-0.
• 6. Panel Bracket: ABS, UL 94V-0.
• 7. PCB: FR4, UL 94V-0.

Performance

• T568A & T568B wiring.
• Insertion Force: 20N max. (IEC 60603-7-4).
• Retention Strength : 7.7 Kg between jack and plug.
• Operation temperature: -10 °C to 60 °C (ISO/IEC 11801, ANSI/TIA/EIA 568 C.2)
• Life (mating cycles):
• • Jack : 750 cycles min. (ISO/ IEC 11081, IEC 60603-7-4)
• • IDC: Suitable for 22-26 AWG streanded an solid wire, compatible with both 110 &
• Krone punch down tools.
• The cat6 transmission performance is in complaince with the ANSI/TIA/EIA 568 C.2
• standard.
