5GHz PtMP LTU-LR

5GHz PtMP LTU

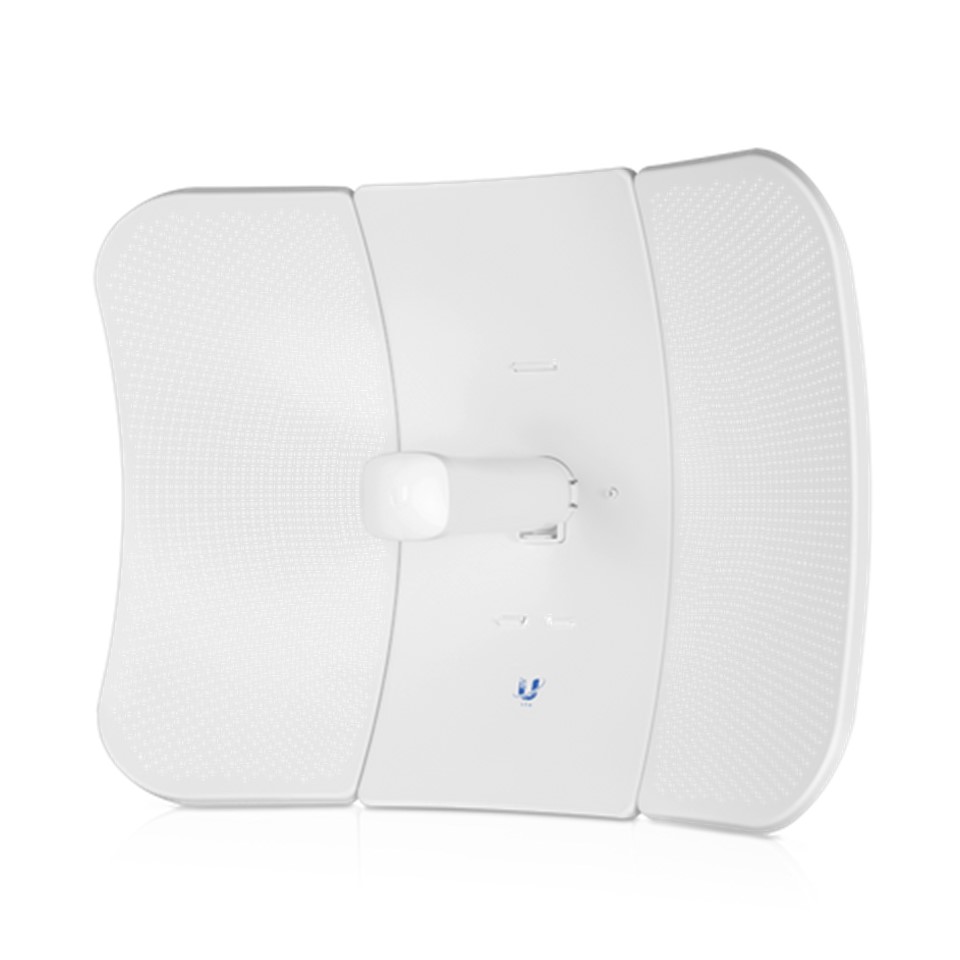

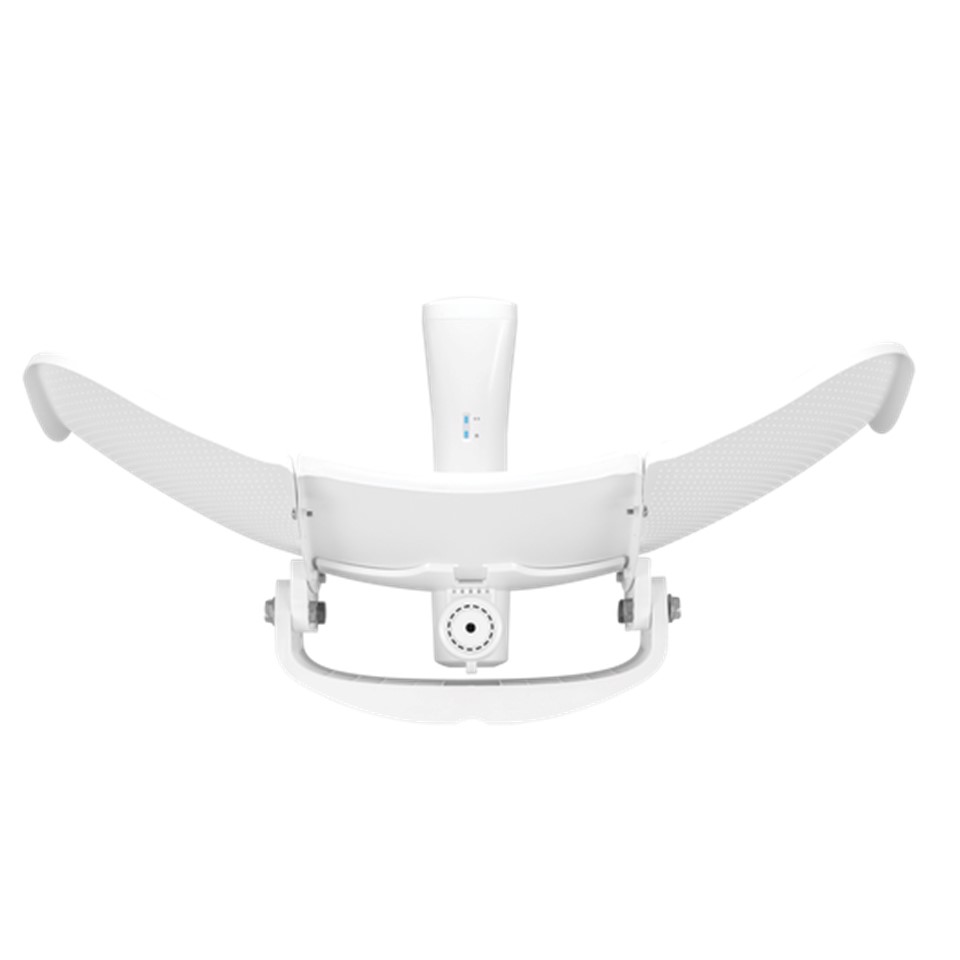

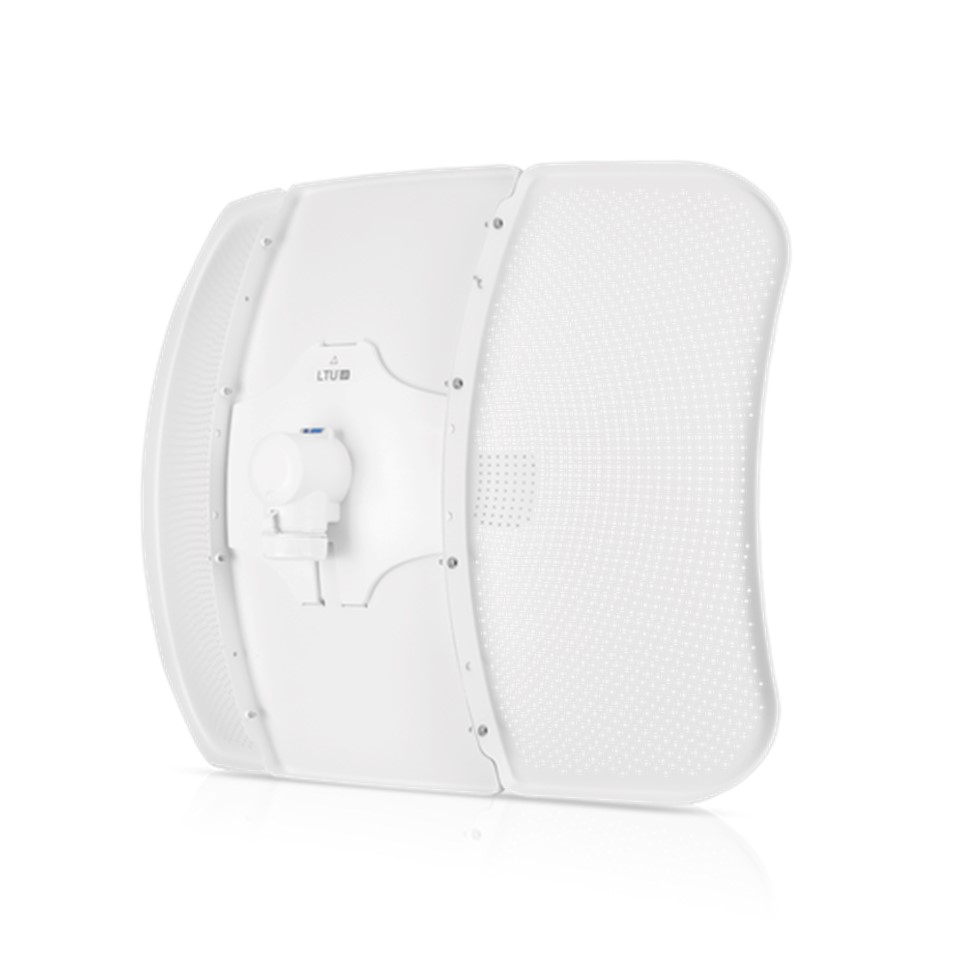

5 GHz PtMP LTU Long-Range Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

Incorporating innovative industrial design with advanced technology, the LTU LR is a Point-to-MultiPoint (PtMP) 5 GHz Radio with an integrated antenna designed for use as a PtMP CPE. LTU technology that breaks through the limitations of 802.11 Wi-Fi technology and supports 1024QAM for high performance and flexible bandwidth (10/20/30/40/50 MHz).

Features:

• • PtMP CPE
  • 1024 QAM
  • 10/20/30/40/50 MHz channel bandwidth
  • Central configuration management from AP side
  • Frequency split
  • Auto power adjustments
  • Router mode support
  • Range up to 30km

Dimensions                                  512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17″)
Weight                                          1.360 kg (2.998 lb)

With Mount                                   1.735 kg (3.825 lb)
Networking Interface                    (1) 10/100/1000 Ethernet Port
Enclosure                                     Outdoor UV Stabilized Plastic
Max. Power Consumption            8.5W
Power Supply                               24V, 0.5A Gigabit PoE Adapter (Included)
Power Method                              24V Passive PoE (Pairs 4, 5+; 7, 😎
Voltage Range                             22 – 26V
Max. Conducted TX Power          22 dBm (per Chain)
Gain                                             26 dBi
Mounting                                      Pole-Mount (Kit Included)
Wind Loading                               550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability                         200 km/h (125 mph)
ESD/EMP Protection                    ± 24kV Contact/Air
Operating Temperature                -40 to 60° C (-40 to 140° F)
Operating Humidity                       5 to 95% Noncondensing
Certifications                                 CE, FCC, IC

5GHz PtMP LTU
