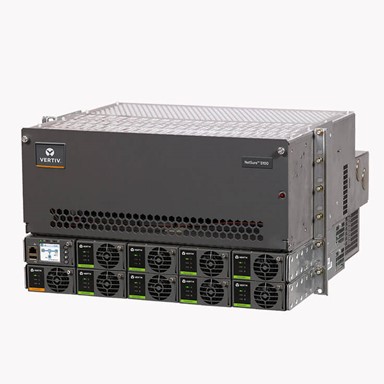

The NetSure 5100 Series, a compact -48/+24 volt 600 A DC power solution, features an advanced control unit, up to (29) positions for 2000 W high-efficiency eSure rectifiers or 1500 W -48 V to +24 V converters or 2000 W solar converters.
Benefits
- Minimize total cost of ownership with high efficiency eSure rectifiers
- Reduce the need for specialized cooling with high temperature operation
- Deploy the power system where 120VAC is the only input option
- Keep your network power source secure with encrypted controller communication
- Extend the life of your batteries with the available battery management tools
- Achieve energy savings with ECO mode, even at low loads
- Have peace of mind with this UL and NEBS power system
- Minimize installation time and drive planned network conformity with custom configuration files
- Reduce your off-grid generator runtime with solar / hybrid input
- Optimize your battery capacity with priority and non priority load shedding
- Solar / hybrid capability – reduces grid dependency
Features
- High efficiency – 96.2% efficient eSure rectifiers
- Wide operating temperature range – rectifiers function at -40 °C to +80 °C (up to +65 °C without de-rating)
- Selectable AC input – 120VAC, 208 to 240 VAC
- Supports Ethernet, SNMP V2 & SNMP V3, ModBus and RS485 communication interfaces
- Battery management capability
- ECO energy savings mode
- NEBS Level 3 compliance and UL Listed
- Custom configuration file capability
- Solar / hybrid capability
- Up to two disconnect levels (LVD)
