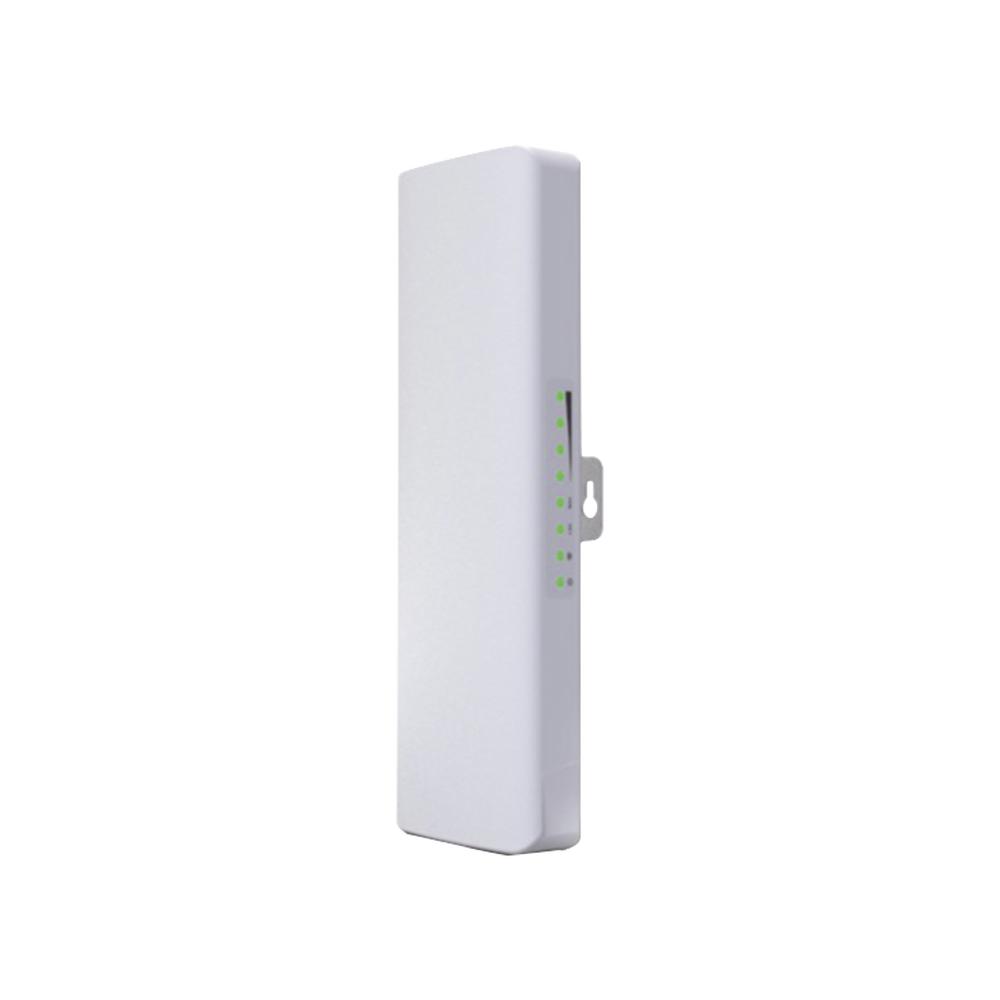

ePMP Force C050900C505A

                                           ePMP Force

Product specifications

• Channel spacing: Configurable on 5MHz increments
• Frequency range: 5GHz: 5150 – 5970 MHz
• Channel width: 5, 10, 20, or 40MHz

Interface

• MAC (media access control) layer: Cambium proprietary
• Physical layer: 2×2 MiMO/OFDM
• Ethernet interface: 10/100/BaseT, Compatible with Cambium PoE pinouts (V+ = 7 & 8, Return = 4 & 5) and Standard PoE pinouts (V+ = 4 & 5, Return = 7 & 8)
• Protocols used: IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping
• Network management: HTTPs, SNMPv2c, SSH
• VLAN: 802.1Q with 802.1p priority  ePMP Force

Performance

• ARQ: Yes
• Nominal receive sensitivity (W/ FEC) @ 20MHZ Channel: MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)
• Nominal receive sensitivity (w/ FEC) @ 40MHZ Channel: MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)
• Modulations levels (ADAPTIVE): MCS0 (BPSK) to MCS15 (64QAM 5/6)
• Latency: (nominal, round trip) 6ms (flexible frame mode), 17ms (GPS sync mode)
• Quality of service: Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC address, broadcast, multicast and station priority.

Link Budget

• Transmit power range: -17 to +30dBm (combined, to regional EIRP limit) (1 dB interval)
• Antenna gain: 14dBi
• Maximum transit power: 28 dBm combined (subject to regional regulatory restrictions)

Physical

• Antenna connection: Integrated antenna
• Surge suppression: 2 Joule Integrated
• Environmental: IP55
• Temperature: -30°C to +60°C (-22°F to +140°F)
• Wind survival: 145km/hour (90mi/hour) with antenna
• Dimensions (h x w x d): 12.4 x 25.1 x 11.9 cm (11.4 x 5.7 x 3.3in)
• Power consumption: 10W maximum, 5W typical
• Input voltage: 10 to 30V

Security
• Encryption: 128-bit AES (CCMP mode)

Product Includes:
• Radio Module
• Mounting Bracket
• Power Supply

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

SPECTRUM

• Channel Spacing: Configurable on 5 MHz increments
• Frequency Range: 5150 – 5970 MHz
• Channel Width: 5 | 10 | 20 | 40 MHz

INTERFACE

• MAC (Media Access Control) Layer: Cambium Proprietary
• Physical Layer: 2×2 MIMO/OFDM
• Ethernet Interface: 10/100 BaseT
• Protocols Used: IPv4, IPv6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, 24V POE, IGMP Snooping

PHYSICAL

• Surge Suppression: 1 Joule Integrated
• Environmental: IP55
• Temperature: -30°C to +55°C (-22°F to +122°F)
• Weight: 0.35 kg (0.88 lbs)
• Wind Survival: 125 km/hour (78 mi/hour)
